Blackmagic Design Hyperdeck Extreme 4K HDR
Description

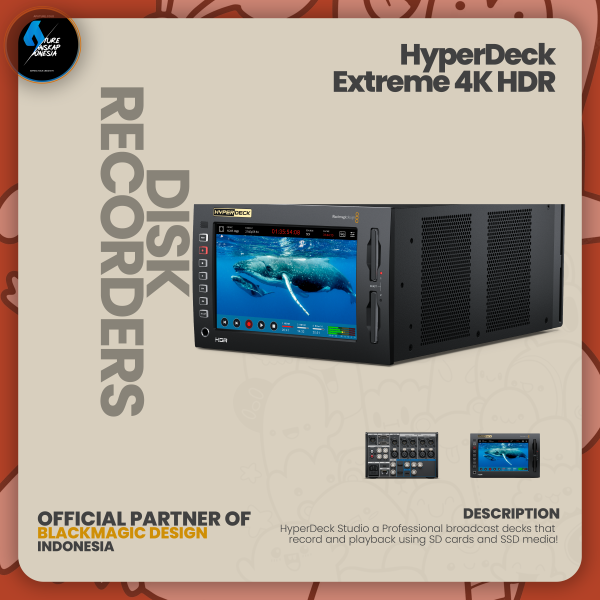

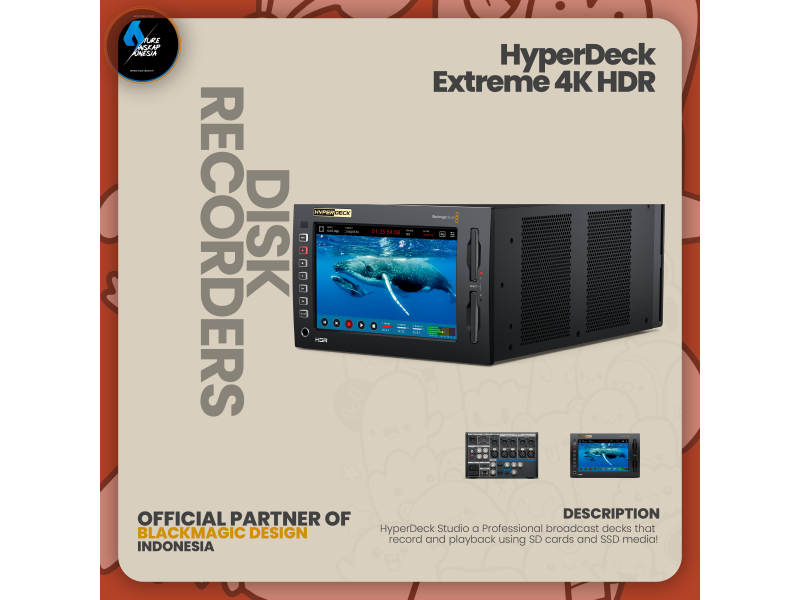

HyperDeck Extreme 4K HDR features the trusted reliability of HyperDeck combined with new innovations such as space saving H.265 files, optional internal cache, 3D LUTs and HDR support! With the ability to record up to native 4K in H.265, you get reduced storage costs and amazing image quality. The large touch screen ensures a perfect view of your recording as well as control over all deck settings.
Connections
SDI Video Inputs
1
SDI Video Outputs
3 (12G-SDI A and B plus 3G-SDI Monitor Out)
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
HDMI 2.0 Video Inputs
1
HDMI 2.0 Video Outputs
1
Analog Video Inputs
1 x Component YUV on 3 BNCs,
1 x Composite NTSC/PAL on 1 BNC.
Analog Video Outputs
None
Analog Audio Inputs
4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
Built in Speaker
Mono
Screen
7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD
Timecode Connections
1 x XLR in and 1 x XLR out.
Reference Input
Tri-Sync or Black Burst.
SDI Audio Inputs
64 channels embedded audio.
SDI Audio Outputs
64 channels embedded audio.
HDMI Audio Inputs
8 channels embedded audio.
HDMI Audio Outputs
8 channels embedded audio.
Remote Control
1 x RS-422 In, 1 x RS-422 Out.
Recorder Configuration
Via user interface or Blackmagic HyperDeck Ethernet Protocol.
Ethernet
10Gb/s
External Recording
1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording.
Computer Interface
1 x USB-C for software updates.
