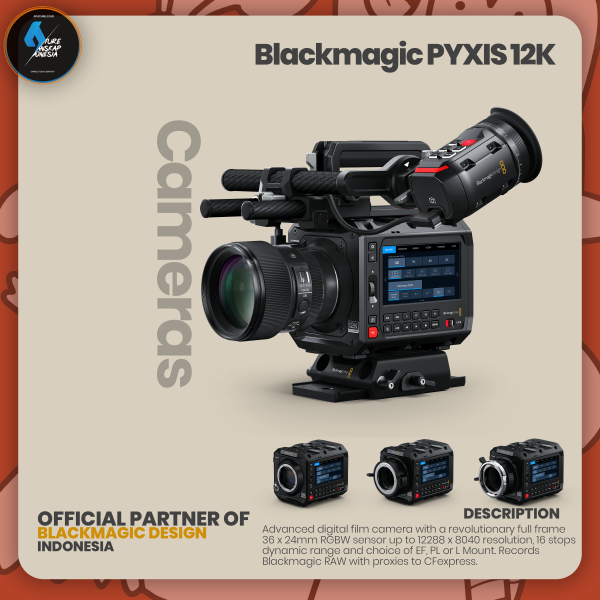

Blackmagic PYXIS 12K
Description
Blackmagic PYXIS 12K L-Mount is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 12,288 x 8040 full frame RGBW sensor with built in optical low pass filter, 16 stops of dynamic range, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. Blackmagic PYXIS 12K L-Mount features a fixed L-Mount that works with the latest full frame lenses and a wide range of lens adapters.
Camera Features
Effective Sensor Size
35.64mm x 23.32mm (Large Format)
Pixel Pitch
2.9 microns
Lens Mount
Active L-Mount.
Lens Control
Iris and focus on supported lenses.
Dynamic Range
16 Stops.
Native ISO
800
Shooting Resolutions
12,288 x 8040 (12K 3:2 open gate)
12,288 x 6912 (12K 16:9)
12,288 x 6480 (12K 17:9)
12,288 x 5112 (12K 2.4:1)
9648 x 8040 (12K 6:5)
9408 x 6264 (9K 3:2)
8688 x 4896 (9K 16:9)
9312 x 4896 (9K 17:9)
9312 x 3864 (9K 2.4:1)
7680 x 6408 (9K 6:5)
8192 x 5360 (8K 3:2 open gate)
8192 x 4608 (8K 16:9)
8192 x 4320 (8K 17:9)
8192 x 3408 (8K 2.4:1)
6432 x 5360 (8K 6:5)
4096 x 2680 (4K 3:2 open gate)
4096 x 2304 (4K 16:9)
4096 x 2160 (4K 17:9)
4096 x 1704 (4K 2.4:1)
3216 x 2680 (4K 6:5)
Frame Rates
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
High Frame Rates
12K (3:2 open gate) up to 40 fps
12K (16:9) up to 45 fps
12K (17:9) up to 50 fps
12K (2.4:1) up to 60 fps
12K (6:5) up to 40 fps
9K (3:2 Super 35) up to 50 fps
9K (16:9 Super 35) up to 65 fps
9K (17:9 Super 35) up to 65 fps
9K (2.4:1 Super 35) up to 80 fps
9K (6:5 Super 35) up to 50 fps
8K/4K (3:2 open gate) up to 72 fps
8K/4K (16:9) up to 84 fps
8K/4K (17:9) up to 90 fps
8K/4K (2.4:1) up to 112 fps
8K/4K (6:5) up to 72 fps
Focus
Auto focus available using compatible lenses.
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings using compatible lenses.
Screen Dimensions
4” 1920 x 1080.
Screen Brightness
1500 nits
Screen Type
LCD capacitive touchscreen.
Metadata Support
Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Controls
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys.
Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
