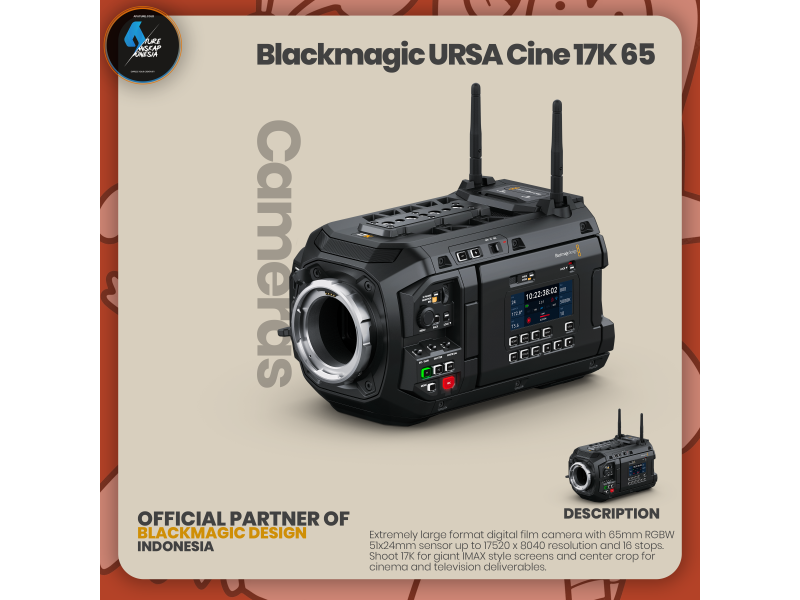

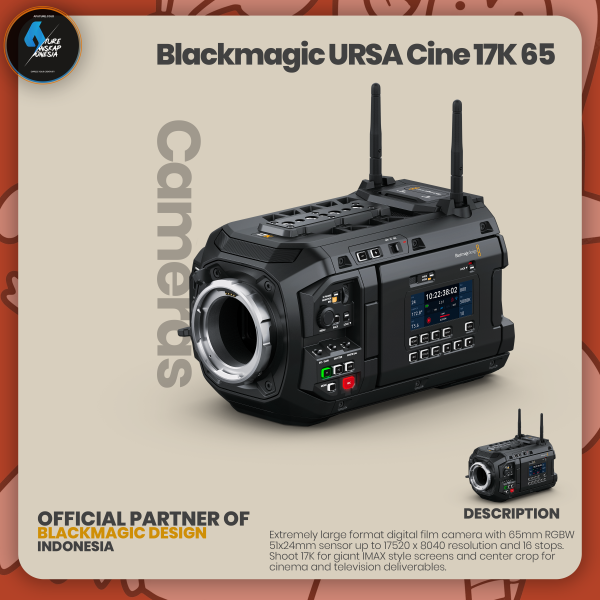

Blackmagic URSA Cine 17K 65
Description
Blackmagic URSA Cine 17K 65 is a revolution in digital film with an extremely large format 17520 x 8040 65mm RGBW sensor with larger photo-sites for 16 stops of dynamic range. The URSA Cine 17K 65 Body model is ideal when you have existing camera accessories that you want to use to create your own camera rig. It excludes top handle, baseplate, power supply, battery plate and LPL lens mount. It does come with an interchangeable PL lens mount, a dedicated assist station with a second 5″ HDR LCD touchscreen and industry standard Lemo and Fischer connections. Blackmagic URSA Cine 17K 65 Body also includes an 8TB media module, high speed 10G Ethernet and WiFi for fast media upload and syncing to Blackmagic Cloud.
Camera Features
Effective Sensor Size
50.81 mm x 23.32 mm (65mm Format)
Pixel Pitch
2.9 microns
Lens Mount
PL mount. Interchangeable with optional URSA Cine Mounts, LPL, EF and HC.
Lens Control
Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses.
Dynamic Range
16 Stops
Shooting Formats
17,520 x 8040 (17K 2.2:1 open gate)
16,128 x 8040 (17K 2:1)
15,360 x 8040 (17K 17:9)
14,304 x 8040 (17K 16:9)
17,520 x 7296 (17K 2.4:1)
12,288 x 8040 (12K 3:2)
12,288 x 6912 (12K 16:9)
12,288 x 6480 (12K 17:9)
12,288 x 5112 (12K 2.4:1)
9648 x 8040 (12K 6:5)
11,680 x 5360 (8K 2.2:1 open gate)
10,752 x 5360 (8K 2:1 full height)
8192 x 5360 (8K 3:2)
8192 x 4608 (8K 16:9)
8192 x 4320 (8K 17:9)
8192 x 3408 (8K 2.4:1)
5840 x 2680 (4K 2.2:1 open gate)
5376 x 2680 (4K 2:1 full height)
4096 x 2680 (4K 3:2)
4096 x 2304 (4K 16:9)
4096 x 2160 (4K 17:9)
4096 x 1704 (4K 2.4:1)
Frame Rates
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
High Speed Frame Rates
17K 2.2:1 open gate up to 60 fps
12K 2.4:1 up to 90fps
8K 2.2:1 open gate up to 100 fps
8K 2.4:1 up to 170 fps
Built in ND Filters
None
Focus
Focus button turns on peaking, auto focus available using compatible lenses.
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screens
2 x Monitoring Screens
1 x Camera Status Screen
Monitoring Screen Dimensions
5 inch.
Monitoring Screen Resolution
1920px x 1080px
Monitoring Screen Brightness
1500 nits.
Monitoring Screen Type
LCD capacitive touchscreen
Metadata Support
Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF and Hasselblad HC lenses when using optional EF lens mount or HC lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls
Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF.
Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
