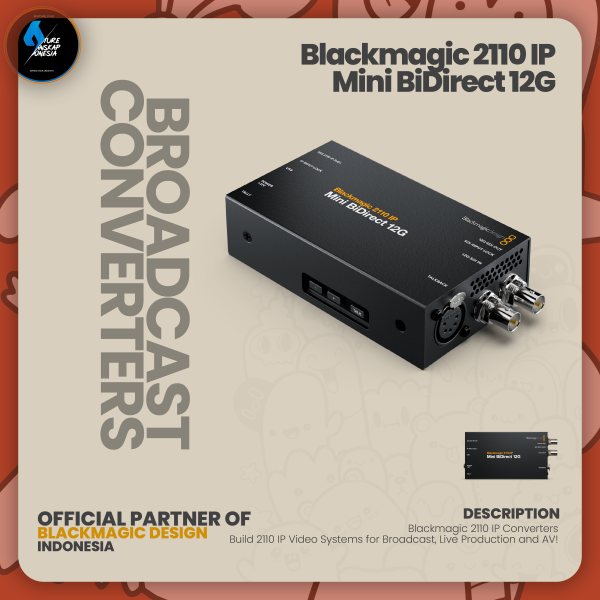

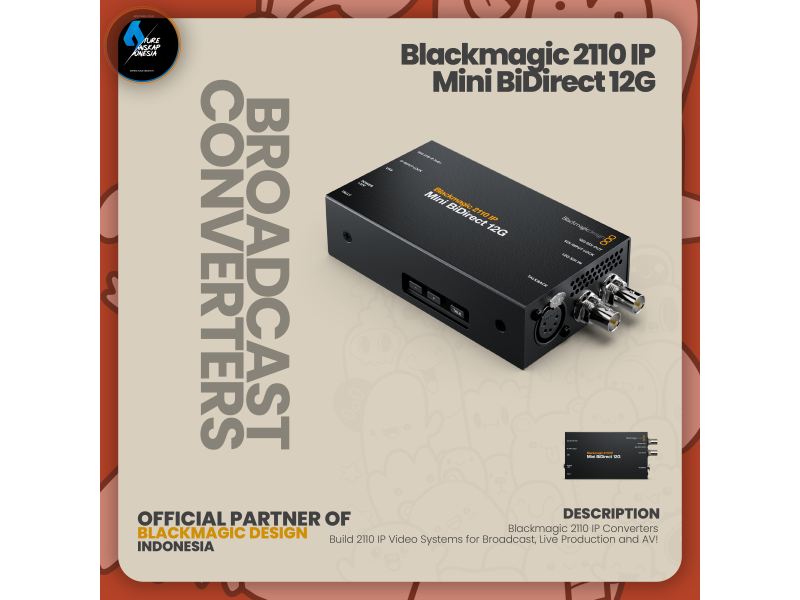

Blackmagic 2110 IP Mini BiDirect 12G
Click Image for Gallery
SDI Video Inputs
1
SDI Video Outputs
1
SDI Rates
1.5G, 3G, 6G, 12G.
SMPTE ST-2110 IP Video Inputs/Outputs
1 x 10G Ethernet
Analog Audio Inputs
1 x 5 pin XLR Talkback.
Analog Audio Outputs
1 x 5 pin XLR Talkback.
SDI Audio Inputs
16 Ch embedded audio on SDI input.
SDI Audio Outputs
16 Ch embedded audio on SDI output.
SMPTE ST 2110 IP Audio Inputs
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
SMPTE ST 2110 IP Audio Outputs
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Multi Rate Support
Auto detection of HD, Ultra HD and 4K.
Reclocking
Yes
Ethernet
1 x 10Gb/s RJ‑45 connector for SMPTE‑2110 IP video in and out.
Computer Interface
1 x USB‑C for configuration and firmware updates.
