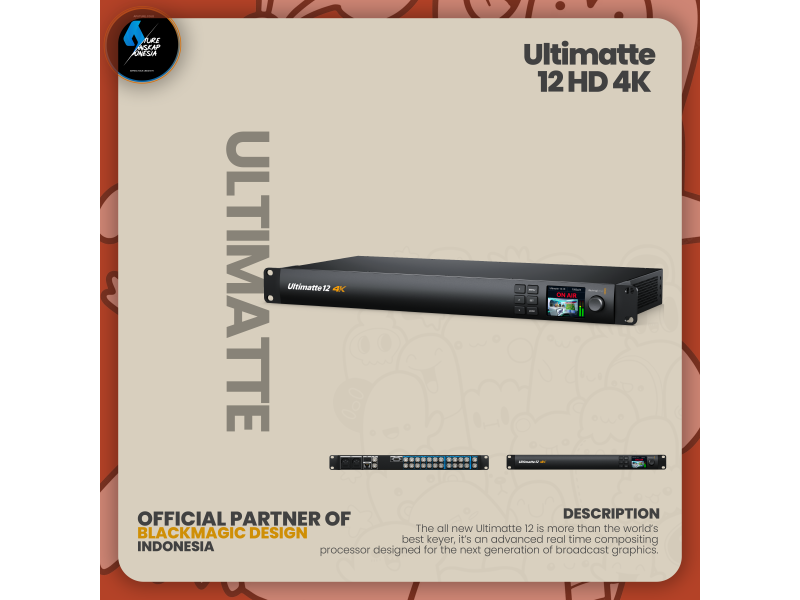

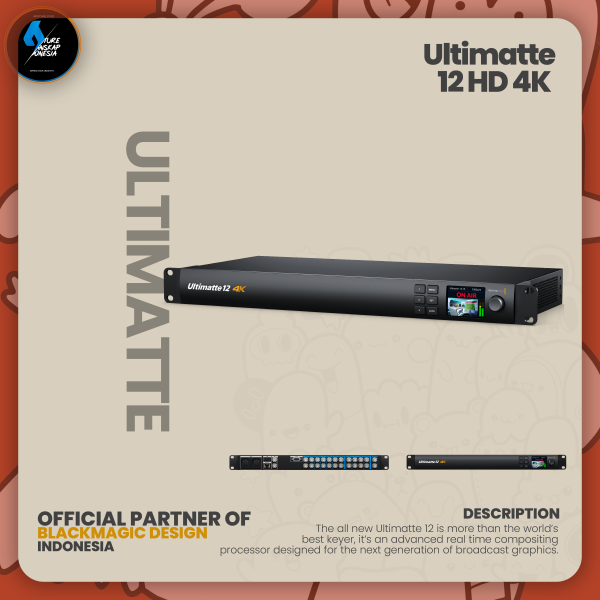

Blackmagic Design Ultimatte 12 4K
Description
Ultimatte 12 4K is an advanced real time compositing processor designed for keying live action video with next generation broadcast graphics, virtual sets and more. Ultimatte 12 4K features new algorithms and color science, incredible edge handling and color separation, amazing color fidelity, and better spill suppression than ever before. The high performance 12G-SDI design gives you the power to work in Ultra HD and HD with sub pixel processing for an amazing image.
Connections
SDI Video Inputs
8
SDI Video Outputs
9
SDI Video Loop Outputs
7
Reclocked SD, HD, Ultra HD for corresponding inputs.
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
ST 2110 Video Inputs
1
ST 2110 Video Outputs
1
Video Input Re-Sync
On all inputs.
Reference Connections
1 x BNC In, 1 x BNC Out, 1 x RJ45 Ethernet
Tri-Sync, Black Burst and PTP.
GPIO
DE15
Ethernet
Up to 10Gb/s for SMPTE 2110 IP video in and out, device control and loading stills into Media Pool.
Computer Interface
1 x USB-C 3.0 for device configuration and software updates.
Ultimatte 12 4K
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 601, REC 709, REC 2020.
Multiple Rate Support
Auto detection of SD, HD, 6G‑SDI and 12G‑SDI.
