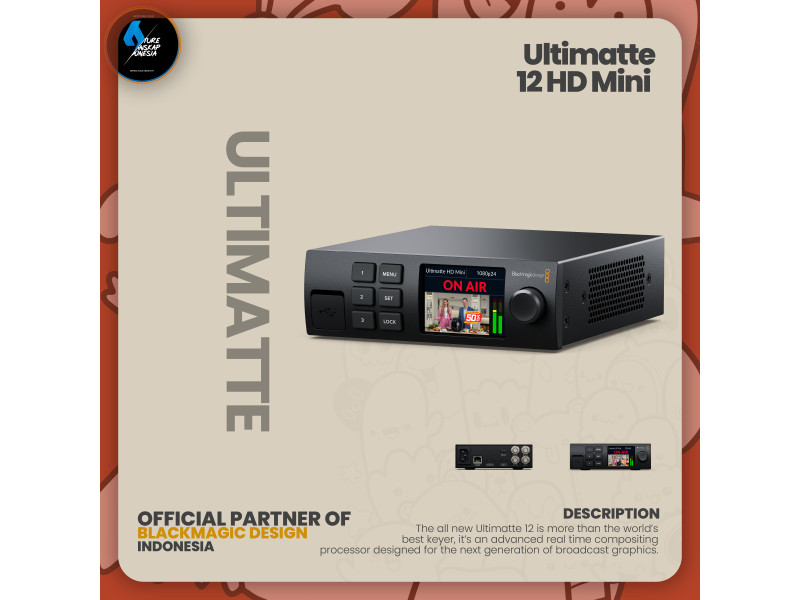

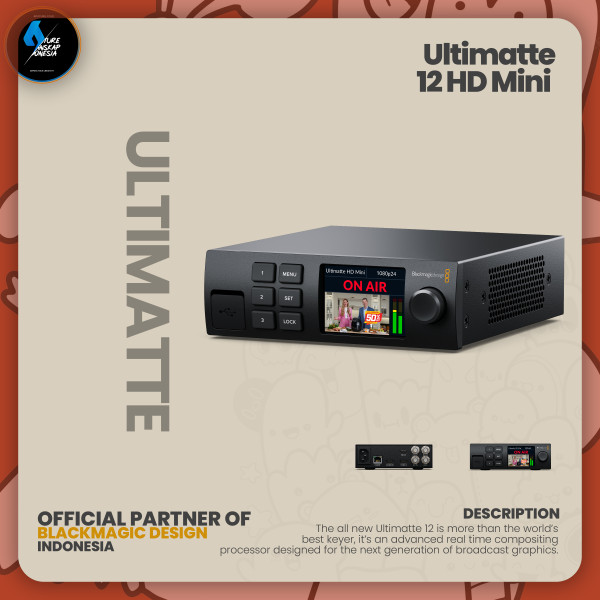

Blackmagic Design Ultimatte 12 HD Mini
Description
Ultimatte 12 HD Mini is an advanced real time keyer designed for creating next generation virtual sets and more with consumer cameras. The HDMI connections are perfect for use with Blackmagic Studio Cameras, Pocket Cinema Cameras and ATEM Mini live production switchers. Plus there’s a massive 6 GB frame store for realistic fixed camera virtual sets from pre rendered still frames. Ultimatte 12 HD Mini features broadcast quality algorithms and color science to deliver photorealistic composites.
Connections
SDI Video Inputs
2
Monitor In for monitor cascade
plus Return In for camera control.
SDI Video Outputs
2
HDMI Video Inputs
2
HDMI Video Outputs
1
Video Input Re-Sync
On all inputs.
SDI Rates
270Mb, 1.5G, 3G.
Ethernet
Up to 1Gb/s for device control and loading stills into Media Pool.
Computer Interface
1 x USB-C 3.0 for device configuration and software updates.
Ultimatte 12 HD Mini
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 601, REC 709.
Multiple Rate Support
Auto detection of SD and HD.
Composite Sources
Foreground
1 x HDMI In
Background
1 x HDMI In
Still from Media Pool
Background Matte
Internal Window
Still from Media Pool
Garbage Matte
Internal Window
Still from Media Pool
Holdout Matte
Internal Window
Still from Media Pool
Layer
Still from Media Pool
Layer Matte
Internal Window
Still from Media Pool
