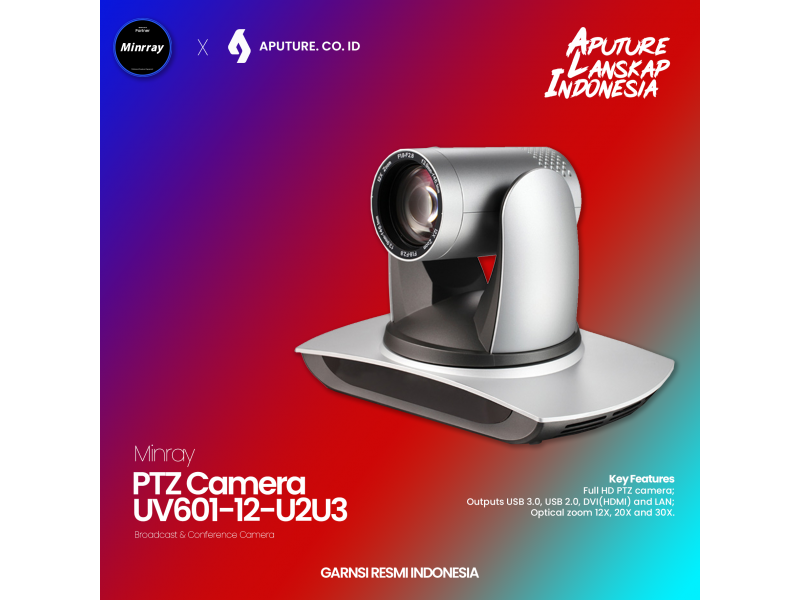

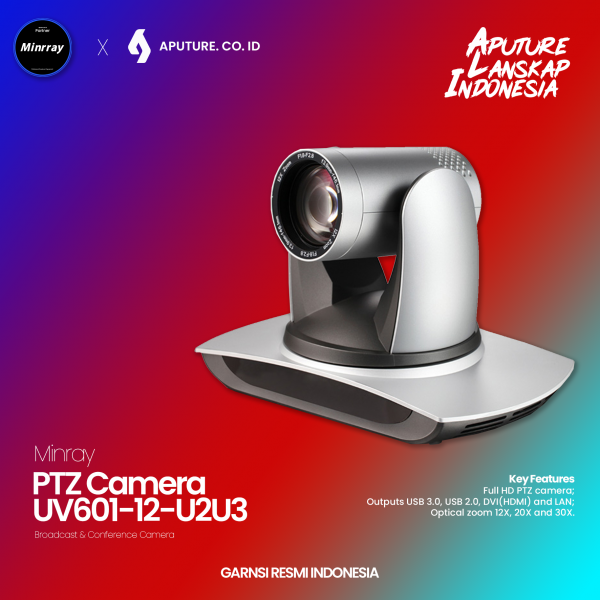

Minrray UV601-12-U2U3 Series HD Video Conference Camera
Key Features
| 1. Superb High-definition Image UV601 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps. 2. Various Optical Zoom Lens UV601 has 12X/20X optical zoom lens for options. 12x zoom lens is with 72.5 ° wide view angle without distortion. 3. Exposure dynamic control algorithm: a unique dynamic exposure control algorithm based on the human eye model, so that the picture exposure is uniform and the sense of layering is strong. Using the industry's most advanced WDR (Wide Dynamic Range) CMOS sensor, combined with exposure dynamic control algorithm processing, it can clearly capture and image all scenes in environments with strong contrast between light and dark (such as backlighting). Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness. Support HDMI, USB2.0,USB3.0, Wired LAN, Wireless LAN Support 8000,16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding. By adopting step driving motor mechanism, UV601 camera works extremely quiet and moves smoothly. 6. Multiple Audio/Video compression
|
Technical Specification
| Model | UV601E0 | UV601E2 | UV601F0 | UV601F1 |
| 1080P PTZ Camera | ||||
| Optical Zoom | 12X f=3.9～46.8mm | 20X f＝5.5～110mm | 12X f=3.9～46.8mm | 20X f＝5.5～110mm |
Viewing Angle | 6.6°（N）70.4°（W） | 3.3°（N）54.7°（W） | 6.6°（N）70.4°（W） | 3.3°（N）54.7°（W） |
| Iris Value | F1.8 – F2.4 | F1.6 – F3.5 | F1.8 – F2.4 | F1.6 – F3.5 |
Image Sensor | 1/2.8 Inch High Quality CMOS Sensor | 1/2.8 Inch High Quality CMOS Sensor | 1/2.8 Inch High Quality CMOS Sensor | 1/2.8 Inch High Quality CMOS Sensor |
| Effective Pixel | 2.07M, 16:9 | 2.07M, 16:9 | 2.07M, 16:9 | 2.07M, 16:9 |
| Video Signal | HDMI/SDI | HDMI | ||
| 1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94 | 1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94 | |||
| U2 | U3 | |||
320x240/352x288/640x360/640x480/704x576/704x480/720x576/800x448/ 800x600/960x540/1024x576/1024x768/1280x720/1920x1080P30/25/20/ 15/10/5 | 1）U3：1920X1080P60/50/30/25、1280X720P60/50/30/25、960X540P30、 640X360P30、640X480P30、352X288P30、800*600P30 2）U3 Compatible with U2：960X540P30、640X360P30、1280X720P10/15、 720X576P50、720X480P60、640X480P30、352X288P30、800*600P30 | |||
| U2 | ||||
320x240/352x288/640x480/704x576/720x480/720x576/640x360/800x448/800x 600/960x540/1024x576/1024x768/1280x720/1920x1080P30/25/20/15/10/5 | ||||
| Digital | 10x | |||
| Interface | HDMI, SDI, LAN(POE), USB2.0, A-IN, RS232-IN、 RS232-OUT, RS 485, Rotary Dip Switch, DC12V Power Supply | HDMI, USB3.0, LAN(POE), USB2.0, A-IN, RS232-IN, RS232-OUT, RS485, Rotary Dip Switch, DC12V Power Supply | ||
| Accessory | Power supply,RS232 control cable, Remote controller, User manual | Power supply,RS232 control cable, Remote controller, User manual | ||
