Blackmagic ATEM Micro Camera Panel
Description

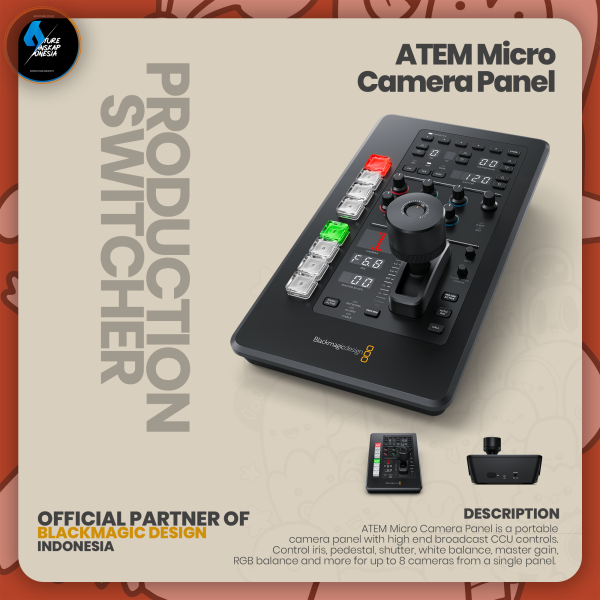

ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.
Connections
Computer Interface
USB Type‑C.
Bluetooth
Bluetooth 5.1 LE
Software Updates
1 x USB‑C for firmware updates.
ATEM Micro Camera Panel
Product Specifics
Camera Selection buttons
8 x NKK buttons.
Assignable via setup utility.
Camera Number Display
Green off air, red on air.
Setup
White and black balance setup.
Flare via modifier key.
3 Axis Joystick
1
Preview Button
1
Iris Control
Auto Iris On, Coarse control.
Iris Range
CLS f32 to f1.2
Gain Range
-12dB to +32dB
ND Filters
0, 2, 4, 6.
Shutter Range
1/24 to 1/2000
White Balance Range
2500K to 10,000K
Recallable Scenes
5 per camera.
Panel Active
Protects settings.
Software
Software Applications
ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
