Blackmagic ATEM Micro Panel
Description

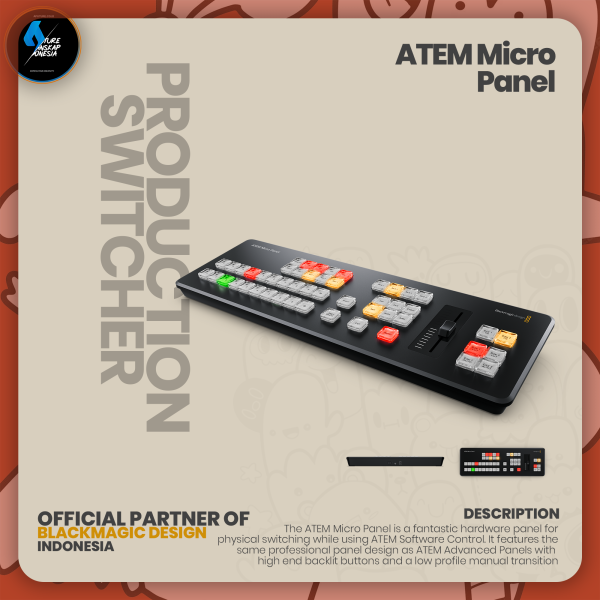

The ATEM Micro Panel is a fantastic hardware panel for physical switching while using ATEM Software Control. It features the same professional panel design as ATEM Advanced Panels with high end backlit buttons and a low profile manual transition fader that keeps the ATEM Micro Panel incredibly portable. There are two rows of ten buttons for program and preview with a shift button to access up to 20 sources. Plus, buttons for upstream and downstream keyers, transitions, preview transition, macros and the four M/E buttons mean it can work with the biggest switchers. Connect ATEM Micro Panel to the ATEM Software Control computer by USB-C or the big internal battery allows wireless connection by Bluetooth for hours!
Connections
Computer Interface
USB Type‑C.
Bluetooth
Bluetooth 5.1 LE
ATEM Micro Panel
Product Specifics
Number of Mix Effects Rows
1
Direct Cross Points
10
Shifted Cross Points
20
Crosspoint Button Type
Tri-Color LED
Preview Transition
1
Switching Type Buttons
CUT and AUTO
Transition Type Buttons
DIP, DVE, STINGER, MIX, WIPE.
M/E Select Buttons
4
Upstream Key Buttons
4 with ON/OFF
Downstream Key Buttons
2 with ON/OFF
Transition Slider
1
Software
Software Applications
ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
