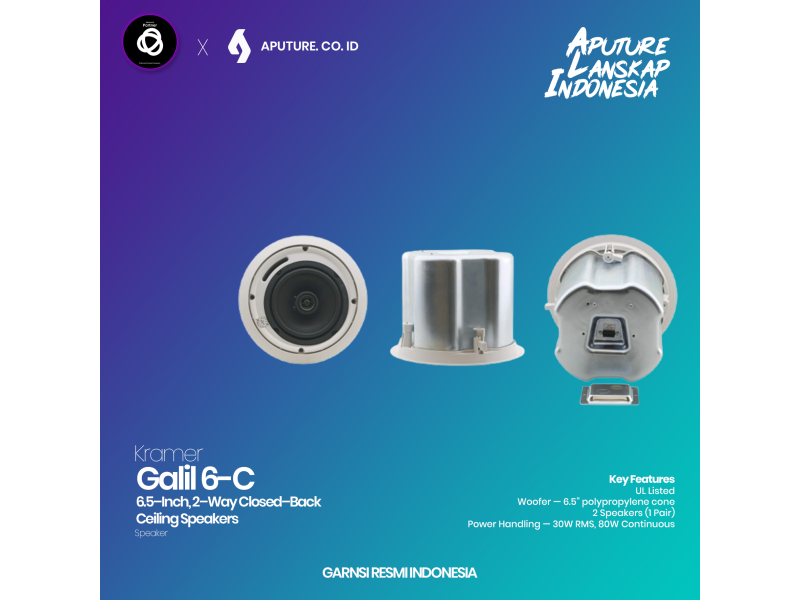

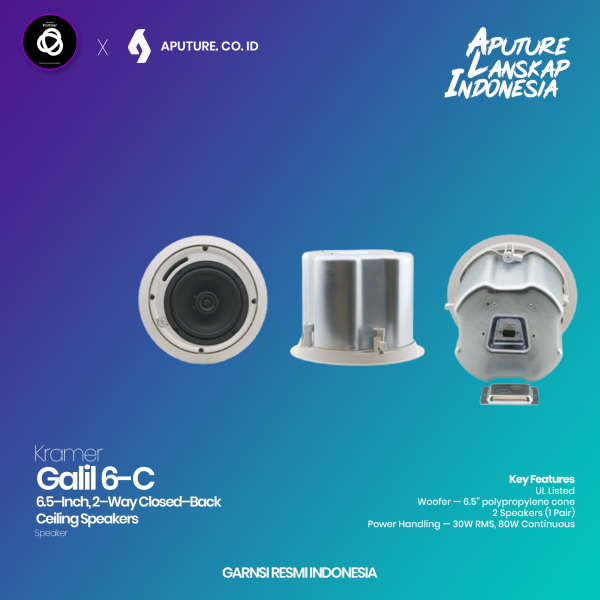

Kramer Galil 6-C
DESCRIPTION
2–way closed–back ceiling speakers
FREQUENCY RESPONSE
80Hz to 20kHz @ — 10dB, 95Hz to 20kHz @ ±3dB
WOOFER
6.5” (165mm) polypropylene with rubber surround
TWEETER
0.5” (13mm) Mylar dome
IMPEDANCE
8Ω (transformer tap in off position)
TRANSFORMER TAPS
70V — 3.7W/7.5W/15W/30W/Off (Lo–Z), 100V — 7.5W/15W/30W/Off (Lo–Z)
SENSITIVITY
87dB SPL, 1W @1m
MAX SPL
Continuous: 100.7dB, peak: 103.7dB
POWER HANDLING
30W RMS, 80W continuous program
CROSSOVER FREQUENCY
9.2kHz
COVERAGE ANGLE
101°
DIRECTIVITY FACTOR (Q)
7.5 averaged 1kHz to 10kHz
DIRECTIVITY INDEX (DI)
8.6dB averaged 1kHz to 10kHz
INPUT CONNECTOR
Terminal block
MATERIALS
ABS bezel, aluminum grill, metal back can
OPERATING TEMPERATURE
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
–40° to +70°C (–40° to 158°F)
HUMIDITY
10% to 90%, RHL non–condensing
WEIGHT PER SINGLE SPEAKER
2.85kg (6.28lbs) approx
SHIPPING WEIGHT (FOR PAIR)
8kg (17.64lbs) approx
INSTALLATION DIMESIONS
Mounting depth: 19.6cm (7.72")
Cutout diameter: 22.4cm (8.82")
ACCESSORIES
Installation bracket, safety cord attached to grill, ceiling mounting kit
COLORS
Available in white
