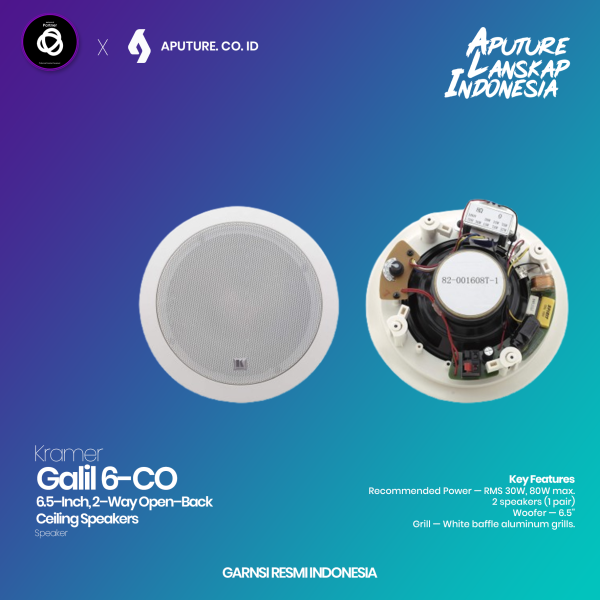

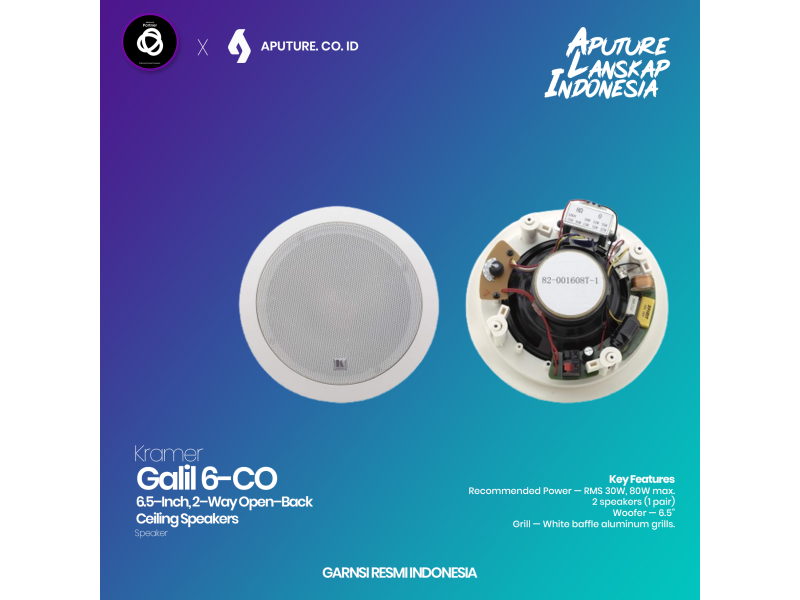

Kramer Galil 6-CO
DESCRIPTION
2–way open–back ceiling speakers
HIGH FREQUENCY DRIVER
0.5" Mylar dome tweeter
LOW FREQUENCY DRIVER
6.5” polypropylene cone with rubber surround woofer
IMPEDANCE
8Ω
DISPERSION COVERAGE
120° @2kHz
CROSSOVER FREQUENCY
3kHz
NOMINAL SENSITIVITY
87dB SPL @1m, 1W
COVERAGE ANGLE
104°
DIRECTIVITY FACTOR (Q)
8.5 (averaged 100Hz to 10kHz)
DIRECTIVITY INDEX (DI)
9.2dB (averaged 100Hz to 10kHz)
FREQUENCY RESPONSE
60Hz to 20kHz
INPUT POWER
30W RMS, 80W continuous program
TRANSFORMER
70V — 3.7W/7.5W/15W/30W
100V — 7.5W/15W/30W
RECOMMENDED AMPLIFIER POWER
30W
INPUT CONNECTOR
Spring–type push terminal block
WEIGHT PER SINGLE SPEAKER
1.55kg (3.41lbs) approx
SHIPPING WEIGHT (FOR PAIR)
4.05kg (8.91lbs) approx
DIMENSIONS (OD)
23cm (9.06")
CUTOUT DIAMETER
19.5cm (7.68")
MOUNT DEPTH
7.5cm (2.95")
OPTIONAL
SKIC–6 installation bracket
