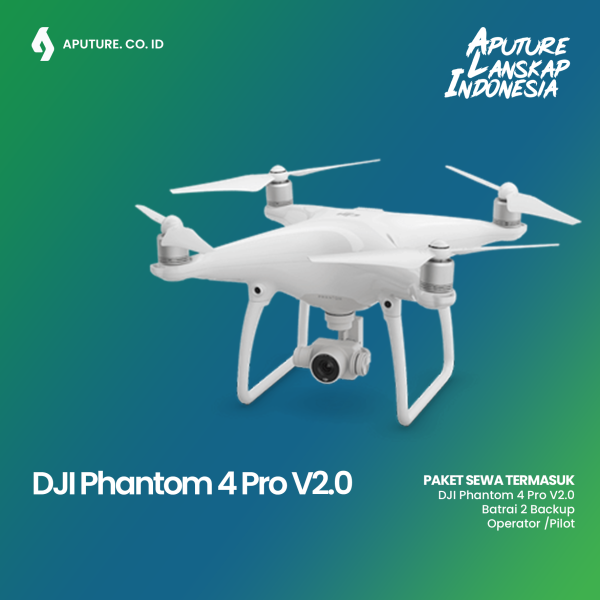

DJI Phantom 4 Pro V2.0
Click Image for Gallery
Phantom 4 Pro V2.0
Aircraft
Weight (Battery & Propellers Included)
- 1375 g
Diagonal Size (Propellers Excluded)
- 350 mm
Max Ascent Speed
- S-mode: 6 m/s
P-mode: 5 m/s
Max Descent Speed
- S-mode: 4 m/s
P-mode: 3 m/s
Max Speed
- S-mode: 45 mph (72 kph)
A-mode: 36 mph (58 kph)
P-mode: 31 mph (50 kph)
Max Tilt Angle
- S-mode: 42°
A-mode: 35°
P-mode: 25°
Max Angular Speed
- S-mode: 250°/s
A-mode: 150°/s
Max Service Ceiling Above Sea Level
- 19685 ft (6000 m)
Max Wind Speed Resistance
- 10 m/s
Max Flight Time
- Approx. 30 minutes
Operating Temperature Range
- 32° to 104°F (0° to 40°C)
Satellite Positioning Systems
- GPS/GLONASS
Hover Accuracy Range
- Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS Positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GPS Positioning)
Gimbal
Stabilization
- 3-axis (pitch, roll, yaw)
Controllable Range
- Pitch: -90° to +30°
Max Controllable Angular Speed
- Pitch: 90°/s
Angular Vibration Range
- ±0.02°
Vision System
Vision System
- Forward Vision System
Backward Vision System
Downward Vision System
Velocity Range
- ≤31 mph (50 kph) at 6.6 ft (2 m) above ground
Altitude Range
- 0-33 ft (0-10 m)
Operating Range
- 0-33 ft (0-10 m)
Obstacle Sensory Range
- 2-98 ft (0.7-30 m)
FOV
- Forward: 60° (Horizontal), ±27° (Vertical)
Backward: 60° (Horizontal), ±27° (Vertical)
Downward: 70° (Front and Rear), 50° (Left and Right)
Measuring Frequency
- Forward: 10 Hz
Backward: 10 Hz
Downward: 20 Hz
Operating Environment
- Surface with clear pattern and adequate lighting (lux>15)
Infrared Sensing System
Obstacle Sensory Range
- 0.6-23 feet (0.2-7 m)
FOV
- 70° (Horizontal), ±10° (Vertical)
Measuring Frequency
- 10 Hz
Operating Environment
- Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.)
Camera
Sensor
- 1-inch CMOS
Effective pixels: 20M
Lens
- FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8-f/11 auto focus at 1 m-∞
ISO Range
