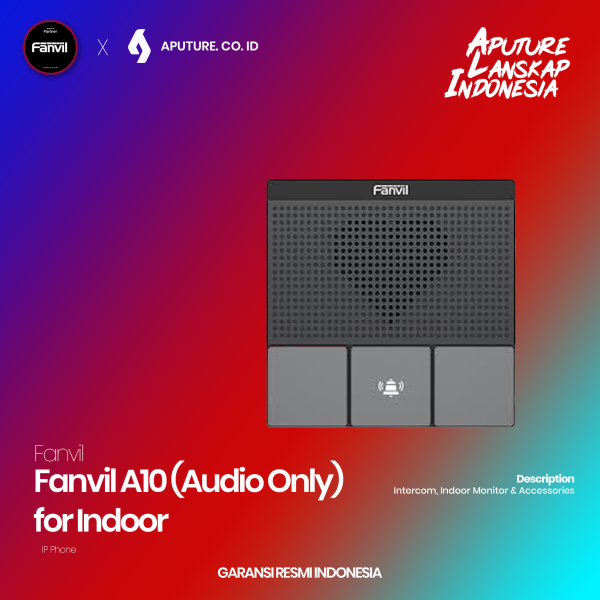

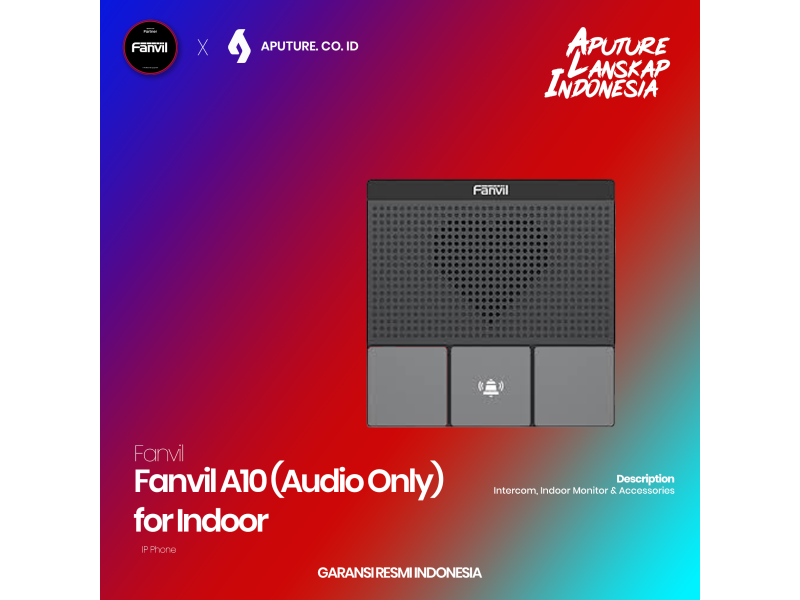

Fanvil A10 (Audio Only) for Indoor
 for Indoor-800x600.png "Fanvil A10 (Audio Only) for Indoor")
The Fanvil A10 SIP Mini Intercom is designed for indoor scenes with security, intercom, and broadcasting functionality. They have a compact and fashionable appearance, featuring 2 SIP accounts and 3 detachable functions buttons, and a PoE power supply. Fanvil A10 have rich functions such as HD audio, IP54 waterproof and dustproof, providing a high quality communication experience for the user.
Key Features
- Features 2 SIP Accounts and 3 detachable functions buttons
- IP54 waterproof and dustproof
- Support HD audio with codec G.722 and Opus
- Built in 2W speaker and Accoustic Echo Canceller (AEC)
- Built in 1 short circuit input/output interface
- Support PoE power supply
- Support wall mountable installation
General
2 SIP Lines
Auto answer
HD Voice
PoE enabled
Intercom function
External Power Supply (OPTIONAL)
Intercom Function
Support customised DSS keys
Network Time Synchronization
Action URL / Active URI
Audio
Narrowband Codec: G.711a/u, G.729AB, G.723.1, AMR, iLBC
Wideband Codec: G.722, Opus
Duplex intercom with Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Deployment and maintenance
Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Web Management Portal
Web-based Packet Dump
Configuration Export / Import
Firmware Upgrade
Syslog
Networking
Physical: 10/100 Mbps Ethernet
IP Mode:IPv4/IPv6/IPv4&IPv6
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
Protocols
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
LLDP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
Physical Specification
A10 : 3 DSS button (speed dial button)
Status Indicator Light : fast flashing red (registration failed, network anomaly), Slow flashing green (call)
1 RJ45 port
1 short circuit input interface
1 short circuit output interface
Power Consumption Adapter 0.94W~1.98W
Power Consumption PoE 1.48W~2.37W
Housing material: ABS
Installation: Indoor installation
Working temperature: -10 ~50 °C
Storage temperature: -20 ~ 50 °C
