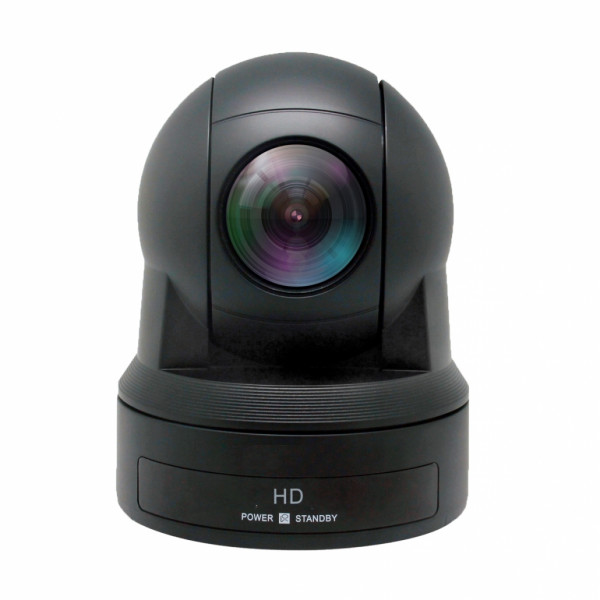

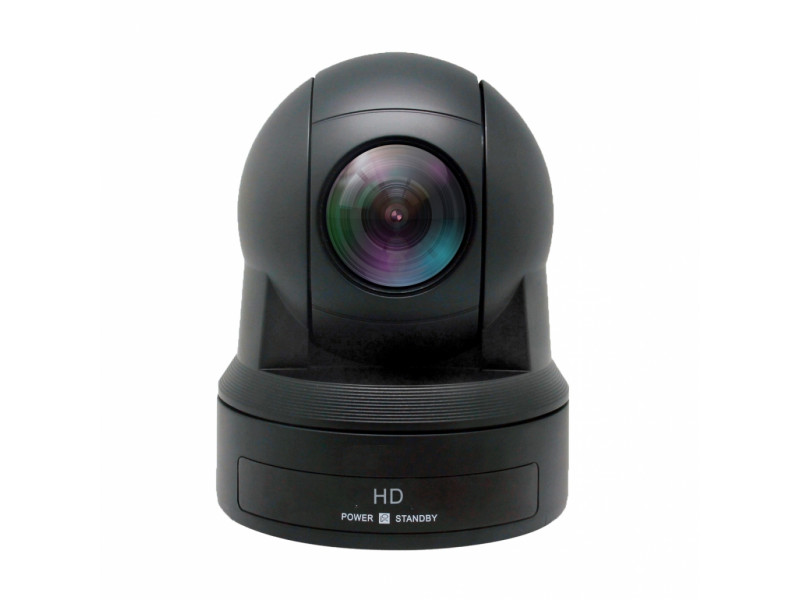

SDI/HDMI PTZ Broadcast Camera- KT-HD61A
Click Image for Gallery
| Item No. | KT-HD61R | KT-HD61A |
| Image Sensor | SONY 1/2.8″ Progressive CMOS | |
| Effective Pixels | 3.10 Megapixels | 3.50 Megapixels |
| Resolution HD | 1080p60/50,1080i60/50,1080p30/25,720p60/50 | |
| Signal System | PAL/NTSC | |
| Lens | 12X optical zoom f=3.9mm(w)~46.8 mm(f) F1.8~F2.8 | 20X optical zoom f=4.7mm(w)~94.0 mm(f) F1.6~F2.8 |
| Horizontal View Angle | 72.5°(W)~7.4°(T) | 58.7°(W)~3.2°(T) |
| Pan | 355°(max. speed:80°/s) | |
| Tilt | -30° to +90° (max. speed: 60°/s) | |
| Focus System | Auto/Manual | |
| S/N Ratio | ≥50db | |
| Preset Position | 9 preset positions by IR remote controller, 255 preset positions by Keyboard | |
| Minimum Illumination | 0.1Lux | |
| Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/ Bright | |
| Shutter Speed | 1/1～1/10,000s | |
| Gain | Auto/Manual | |
| White Balance | Auto/ Indoor/Outdoor/Manual | |
| Image Effect | Full color/black and white/Electronic flip | |

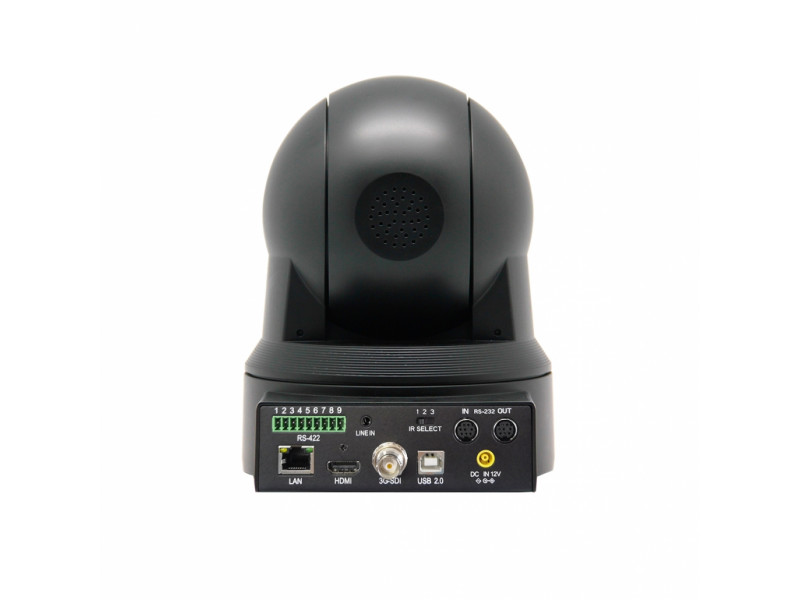

| Video Output HD | HDMI, 3G/HD-SDI, USB2.0, IP(POE Optional) | |
| Other Input | Line In | |
| Control Protocol | SONY VISCA, PELCO P/D | |
| Other Protocol | RTMP, RTSP, TCP/IP, HTTP, ONVIF, NDI®|HX(Optional) | |
| Control Mode | RS-232C, RS-422/485 | |
| Power | 12V DC(10.8～13.0V DC) | |
| Power Consumption | Max. 30W(DC 12V) | |
| Operating Temperature | 0~40℃ | |
| Storage Temperature | -20-60℃ | |
| Dimensions | (L)170 ×(W)150 ×(H)190mm | |
| Weight | 1550g | |
| Color | Black | |
| Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDMI cable, USB cable, Ceiling bracket | |
| Carton | Each camera in a small carton, then 4 pcs packaged in one large carton | |
| Certificate | ISO/CE/FCC/RoHS | |
