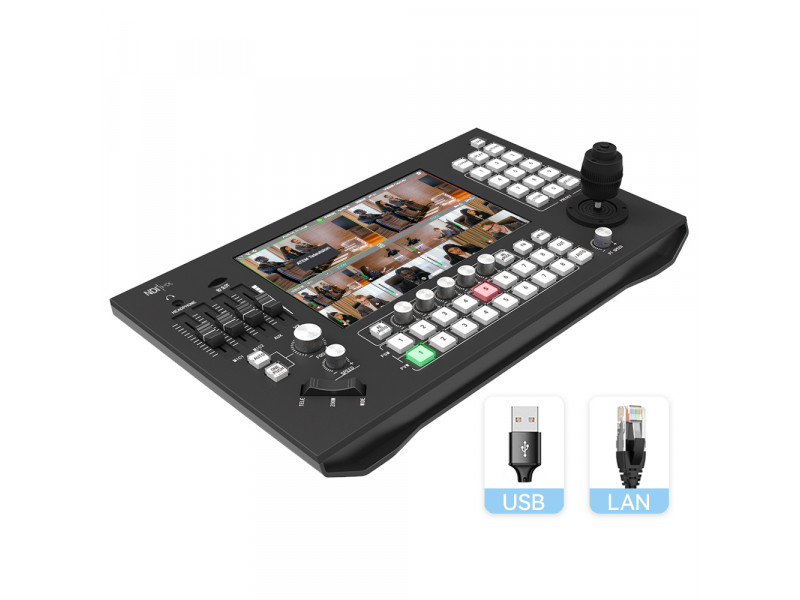

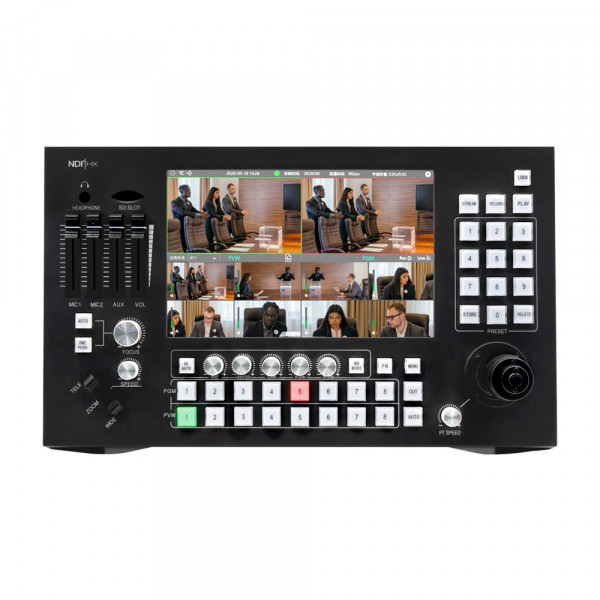

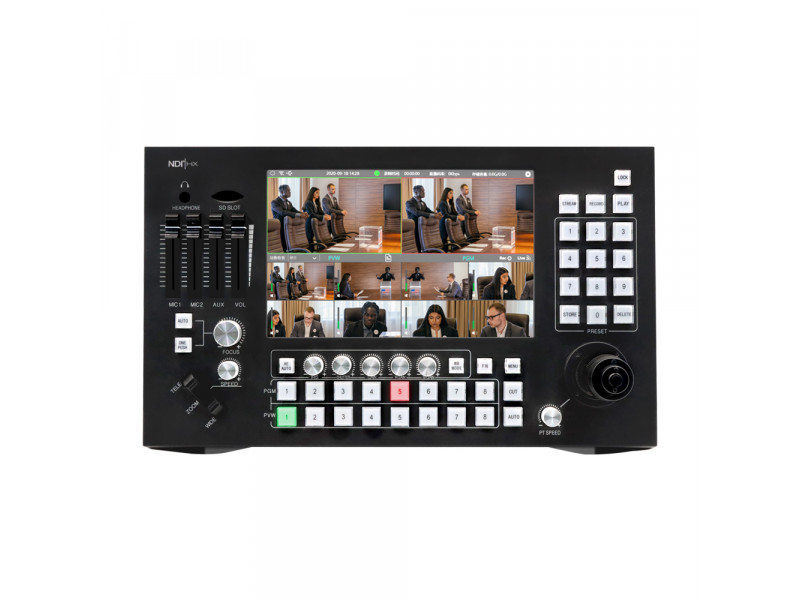

KT-KD30 live video switcher
Click Image for Gallery
| Parameters | |
| Video Standard | FHD |
| Video Processing Capability | input： Up to :1920x1080p60 * 8 output： Up to 1920x1080p60（HDMI）+1920x1080p60（IP）+1280x720p60（IP） |

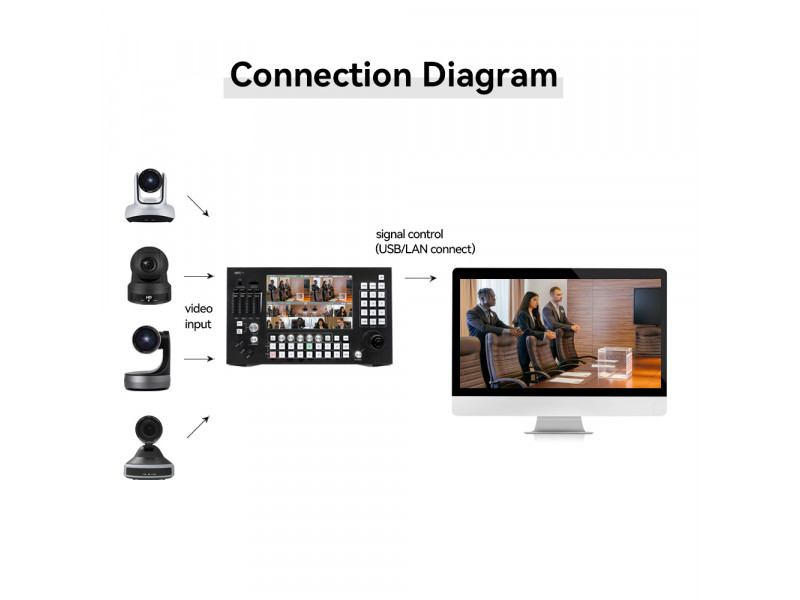

| Video Input | 8 channel IP video streaming +1 channel HDMI+ local video |
| Video Output | 2 channel IP video streaming +1 channel HDMI+ local recording |
| Live Video Encoding Format | H.264、H.265 |
| Live Video Bitrate | 512Kbps~16384Kbps |
| Live Video Bitrate Mode | CBR |
| Network Input Protocol | RTSP、RTMP |
| Network Output Protocol | RTSP、RTMP、NDI|HX(optional) |

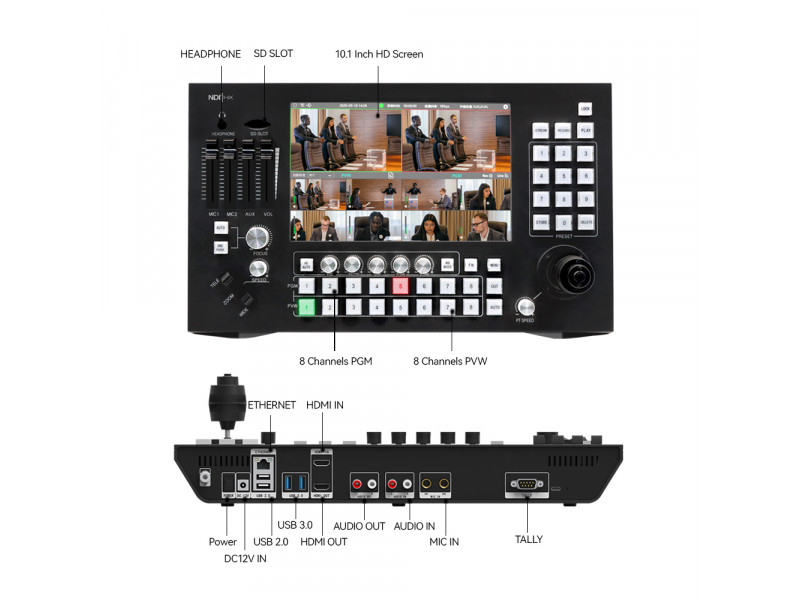

| Audio Input | RCA*1 TRS6.3mm*2: Compatible with active and passive signals Video embedded |
| Audio Output | RCA*1 Video embedded |
| Mixer | 4 physical tuning + 8 digital tuning |
| Transition Control | T-Bar、button 、touch |
| Subtitle Overlay | support |
| Logo Overlay | support |
| Tally | DB9 output |
| USB Port | USB3.0*2+USB2.0*2 |
| Camera Control | Support PTZ, focus, exposure, white balance, preset position control |
| Power Supply | |
| Input Voltage | DC 12V |
| Input Current | 3A |
| Rated Power | 36W |
| POE | Optional 802.3AT |
| Others | |
| Use Environment | Indoor |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -10℃~50℃ |
| Dimensions | 420*257.52*121.2mm |
