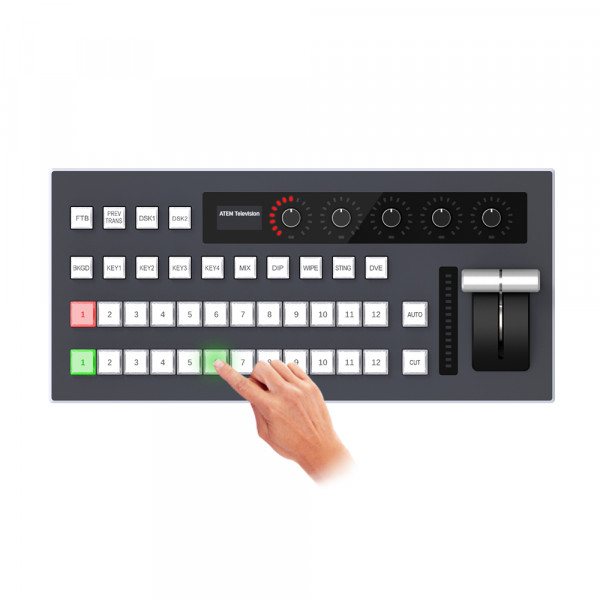

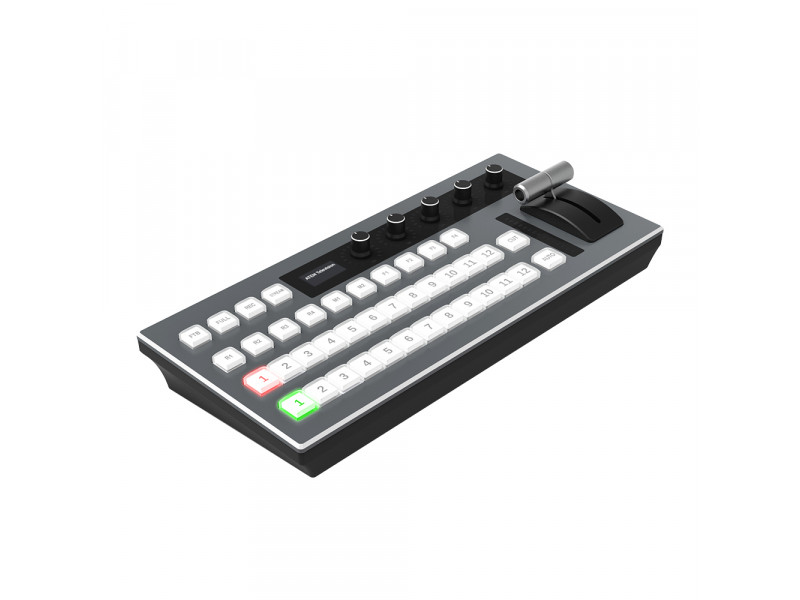

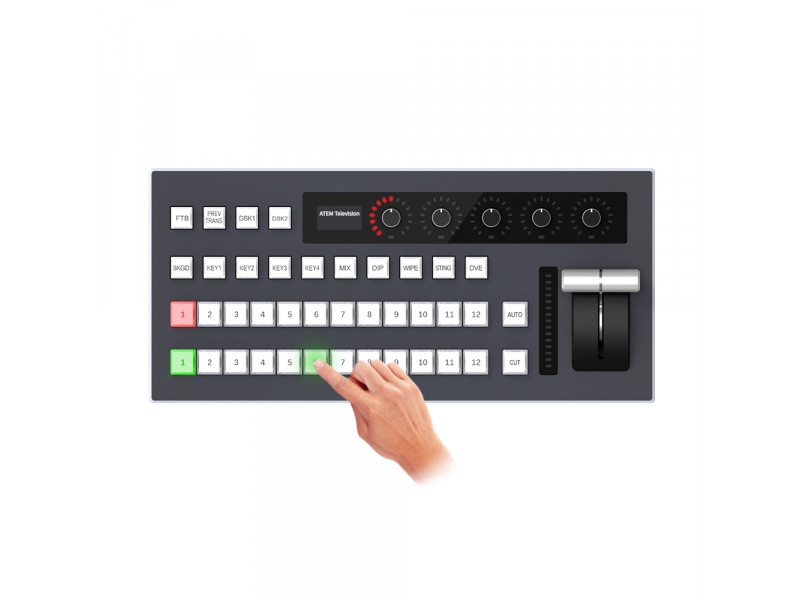

KT-KD50V Vmix control panel
Click Image for Gallery

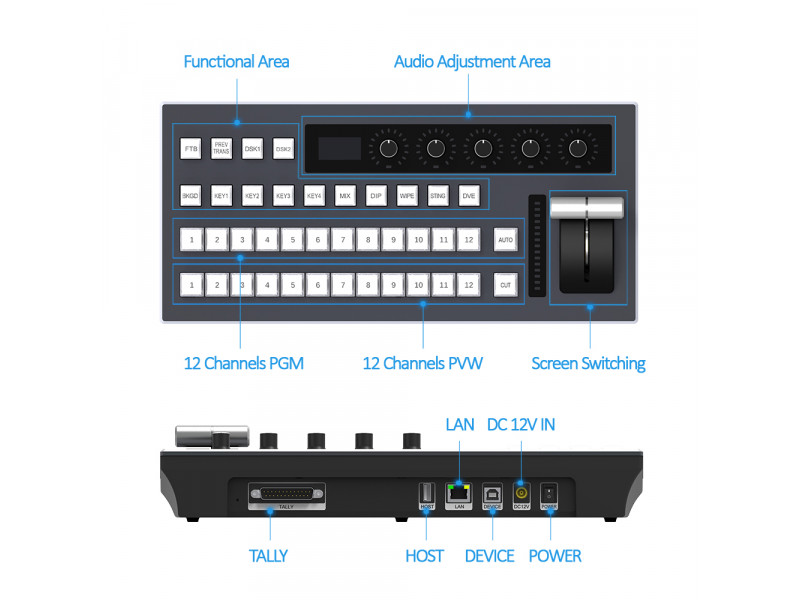

| Main features: | |
| Compatible device | vMix series software |
| Connection method | USB(Support power supply, LAN(POE optional) |
| channel | 12 channels |
| volume control | 1 input + 4 output |
| Transition control | Automatic transition, hard cut, T-Bar |
| Transition effects | Support |
| Status light | Support |
| Display screen | Support |
| Tally | 12-channel PGM+12-channel PVW |
| Power supply | |
| Input voltage | DC 12V |
| Input Current | 0.3A |
| Rated power | 4W |
| POE | KD50A: Standard802.3AF KD50V: 802.3AF optional |
| Others | |
| Use environment | Indoor |
| Operating temperature | 0℃~40℃ |
| Storage temperature | -10℃~50℃ |
| Dimensions | 420*257.52*121.2mm |
