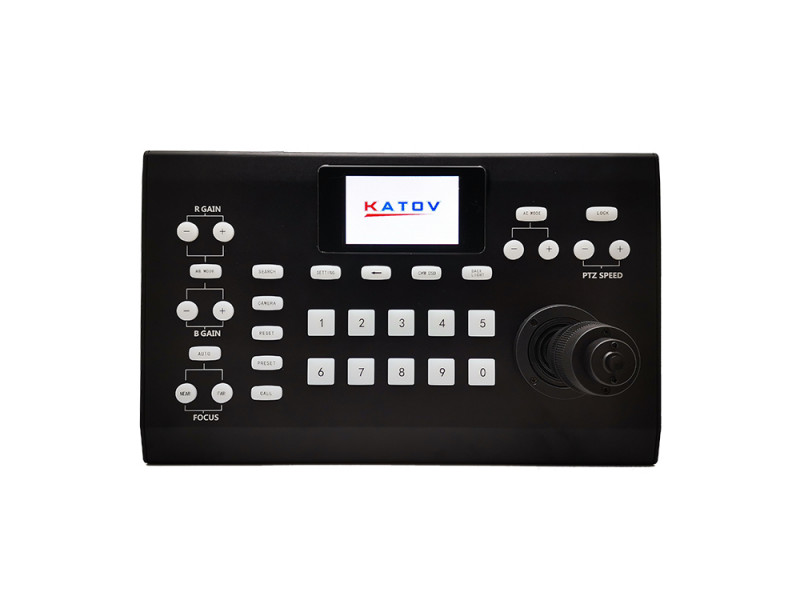

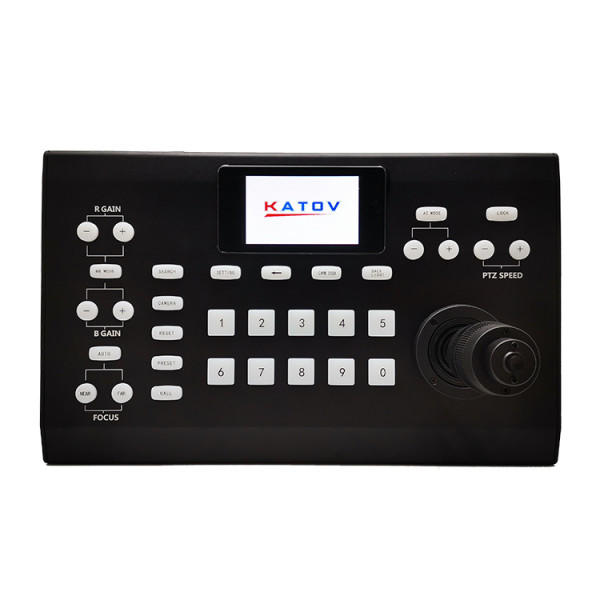

Professional Broadcast Keyboard Controller – KT-610C
Click Image for Gallery
| Item No. | KT-610C |
| Protocol | VISCA, PELCOP/D, Polycom, Cisco, Canon, Panisonic |
| Baud Rate | 1200、2400、4800、9600、19200 |
| Joystick | Triaxial + a button, light coding, accuracy of ±80 level |
| LCD display screen | English version, blue backlight, 20 characters, 2 lines |
| Button | 28 keys, Double color backlight, 10 level of brightness |
| controllable cameras | 64 |
| Video switching matrix | Can control 1 video matrix with 8 inputs and 4 outputs |
| communication dispatcher | 16X4=64, can control 16 communication dispatchers, each one divides into 4. |

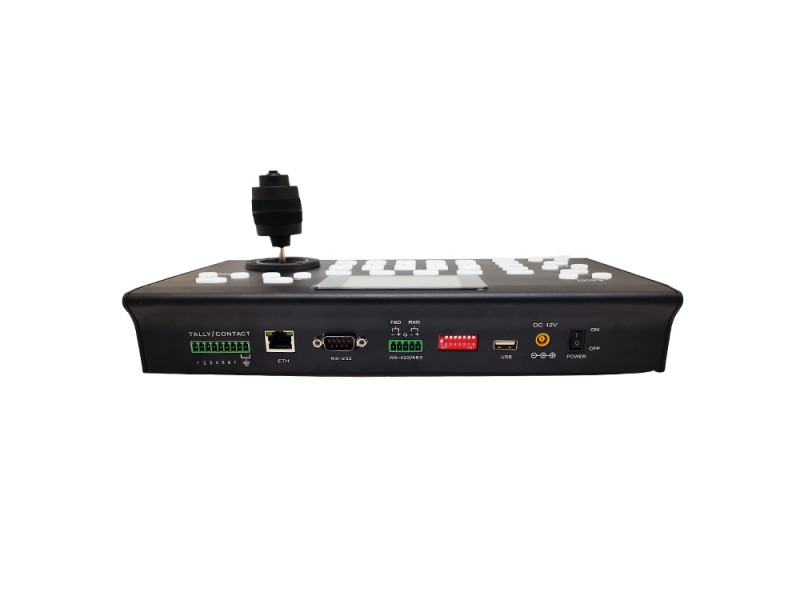

| Interface | 1*RS485 interface, 1*RS232 interface, 1*USB connect |
| Power Supply | DC12V/500mA |
| Color | Black |
| Material | Aluminium Alloy |
| Weight | 1.47KG |
