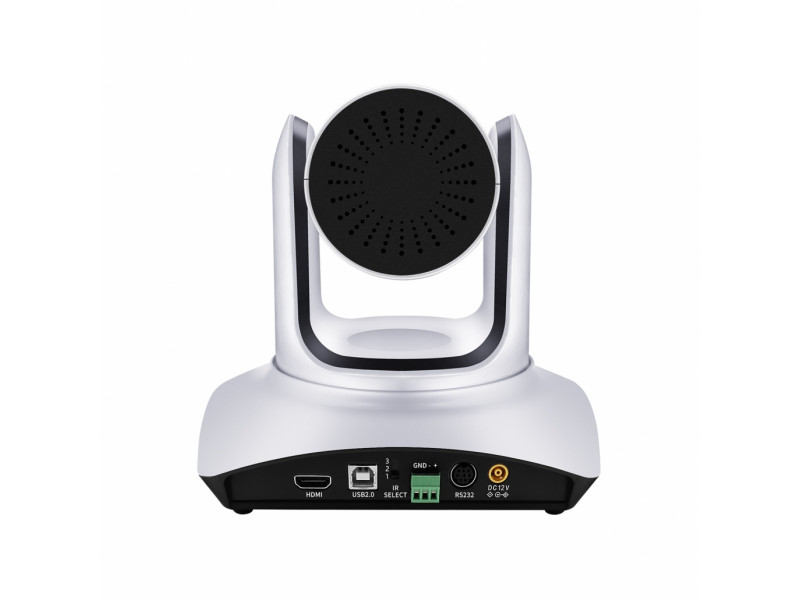

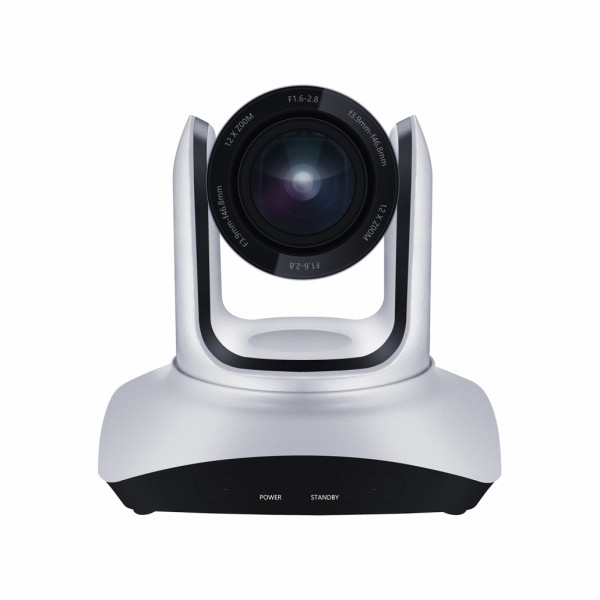

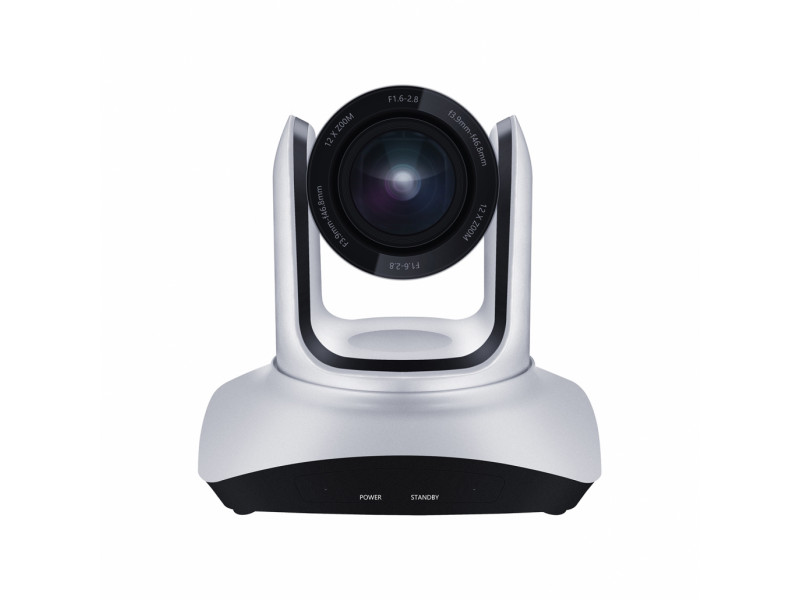

SDI/HDMI Video Conference Camera-KT-HD40RS
Click Image for Gallery
| Product name | KT-HD40RS | KT-HD40AS |
| Image Sensor | SONY 1/2.8’’ Progressive CMOS | |
| White Balance | 3.10 Megapixels | 3.50 Megapixels |
| Image Effect | 1080P60/50, 1080P30/25, 1080i60/50, 720P60/50 | |
| Optional: 1080p59.94, 1080p29.97, 1080i59.94 | ||
| Signal System | PAL/NTSC | |
| Lens | 12X zoom optional f=3.9mm(wide angle end)～46.8mm(far end) | 20X zoom optional f=4.7mm(wide angle end)～94.0mm(far end) |
| Horizontal View Angle | 72.5°(W)~7.4°(T) | 58.7°(W)~3.2°(T) |
| Focus System | Auto/Manual | |
| Minimum Illumination | 0.1 Lux | |
| Shutter Speed | 1/1~1/10000S | |
| Gain | Auto/Manual | |
| White Balance | Auto/Manual/Indoor/Outdoor | |
| Image Effect | Full color//Electronic flip | |
| S/N Ratio | ≥50db | |
| Pan | 355°(max. speed:80°/s) | |
| Tilt | ﹣30° to +90° (max. speed: 60°/s) | |
| Preset Position | 9 preset positions by IR remote controller | |
| Video Output HD | HDMI, 3G/HD-SDI, IP | |
| Control Mode | RS-232C, RS-422/485 | |
| Power | 12V DC(10.8~13.0V DC) | |
| Operating Temperature | 0℃~40℃ | |
| Storage Temperature | -20℃~60℃ | |
| Dimension | (L)181×(W)181×(H)176mm | |
| Consumption | Max.12W (DC 12V) | |
| Weight | 1525g | |
| Color | Silver | |
| Control Protocol | SONY VISCA、PELCO P/D | |
| Network protocol | VISCA over IP, RTSP, RTMP, ONVIF | |
| Control Mode | RS-232C, RS-422/485 | |
| Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDMI cable, Ceiling bracket | |
| Carton | Each camera in a small carton, then 4 pcs packaged in one large carton | |
| Certificate | ISO/CE/FCC/RoHS | |
