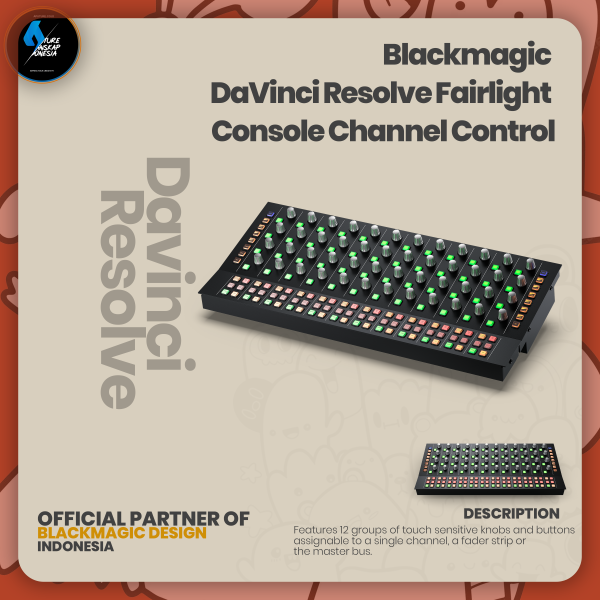

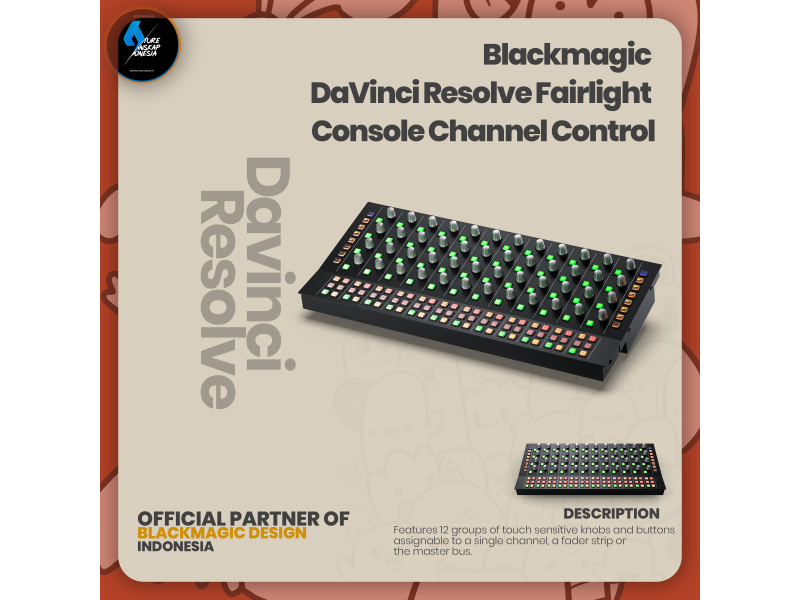

Blackmagic Fairlight Console Channel Control
Description
Fairlight Console Channel Control is a multi function panel designed to extend the functionality of your channel faders. You get 12 groups of touch sensitive control knobs and illuminated buttons that can be assigned to a single channel, the 12 adjacent fader channels or the master bus. This gives you fast access to 192 different parameter controls per channel! Your selections control the LCD monitor so you have a precise display of your changes as you make them.
Connections
Ethernet
Ethernet supports 10/100/1000 BaseT.
Updates and Configuration
1 x USB Type‑C for software configuration and software updates.
Software
Internal software upgrade via updater application.
Operating Systems
Mac icon
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows Icon
Windows 10 Creators Update
Windows 11
Windows 11 for ARM
Rocky Linux icon
Rocky Linux 8.6
Settings Control
Fairlight Studio and Console setup utility software when connected by USB.
Power Requirements
Power Supply
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power Usage
20W max.
Physical Specifications
Fairlight Console Channel Control
Environmental Specifications
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
